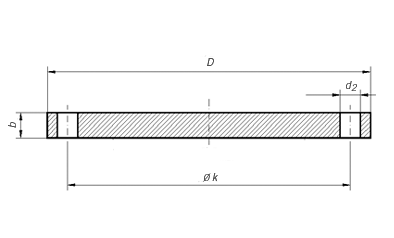

Norma DIN 2527 PN16 - blind flanges flange Suppliers Exporters Manufacturers Stockist India :
| Rated Diameter |
Flange | Screws | Weight of a flange (7,85 Kg/dm3) |
||||
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 8 | 4,77 | ||
| 100 | 220 | 20 | 180 | 5,65 | |||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 12 | 16,1 | ||
| 250 | 405 | 26 | 355 | M 24 | 26 | 24,9 | |
| 300 | 460 | 28 | 410 | 35,1 | |||
| 350 | 520 | 30 | 470 | 16 | 47,8 | ||
| 400 | 580 | 32 | 525 | M 27 | 30 | 63,5 | |
| 500 | 715 | 36 | 650 | 20 | M 30 | 33 | 102 |
ANSI B16.5 Class 150 Flanges ANSI 300 ANSI B16.5 Class 300 Flanges ANSI 400 ANSI B16.5 Class 400 Flanges ANSI 600 ANSI B16.5 Class 600 Flangess ANSI 900 ANSI B16.5 Class 900 Flanges ANSI 1500 ANSI B16.5 Class 1500 Flanges ANSI 2500 ANSI B16.5 Class 2500 Flanges ASME B16.47 Series A Flangess ASME Series B ASME B16.47 Series B Flanges ANSI B16.5 Class 150 Flanges ANSI 300 ANSI B16.5 Class 300 Flangess ANSI 400 ANSI B16.5 Class 400 Flanges ANSI 600 ANSI B16.5 Class 600 Flangess ANSI 900 ANSI B16.5 Class 900 Flangess ANSI 1500 ANSI B16.5 Class 1500 Flanges ANSI 2500 ANSI B16.5 Class 2500 Flanges ASME B16.47 Series A Flanges ASME Series B ASME B16.47 Series B Flangess ANSI B16.5 Class 150 Flanges ANSI 300 ANSI B16.5 Class 300 Flanges ANSI
Carbon Steel Flanges Specifications :
| Size | : | ½" TO 54" |
| Pressure Rating | : | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Standards | : | ASME B 16.5, ASME B 16.47, API 6A |
| Type | : | SORF, WNRF, SWRF, BLRF, Threaded etc. |
| Specials | : | Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc. |
Material of Construction |
Standards |
Grades |
Carbon Steel Flanges
|
ASTM A105, A-350 LF2 SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8,
|
|
Low Temperature Carbon Steel Flanges |
ASTM A350 | ASTM A350 Flange |
