Norma DIN 2573 PN6 - plate flange Suppliers Exporters Stockist India :

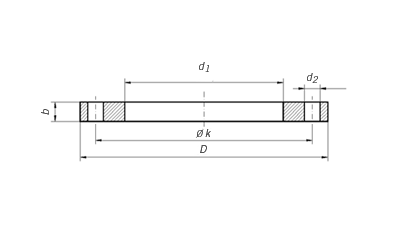

Pipe			Flange					Screws			Weight of a flange (7,85 Kg/dm3)
Rated Diameter	d1		d5	D	b	c	k	Number	Thread	d2	Kg
	ISO Series 1	DIN Series 2
15	-	20	21	80	12	5	55	4	M 10	11	0,41
	21,3	-	22
20	-	25	26	90	14	5	65	4	M 10	11	0,6
	26,9	-	27,6
25	-	30	31	100	14	5	75	4	M 10	11	0,74
	33,7	-	34,4
32	-	38	39	120	16	5	90	4	M 12	14	1,19
	42,4	-	43,1
40	-	44,5	45,5	130	16	5	100	4	M 12	14	1,39
	48,3	-	49
50	-	57	58,1	140	16	6	110	4	M 12	14	1,53
	60,3	-	61,1
65	76,1	-	77,1	160	16	6	130	4	M 12	14	1,89
80	88,9	-	90,3	190	18	7	150	4	M 16	18	2,98
100	-	108	109,6	210	18	7	170	4	M 16	18	3,46
	114,3	-	115,9
125	-	133	134,8	240	20	7	200	8	M 16	18	4,6
	139,7	-	141,6
150	-	159	161,1	265	20	7	225	8	M 16	18	5,22
	168,3	-	170,5
200	219,1	-	221,8	320	22	7	280	8	M 16	18	7,15
250	-	267	270,2	375	24	7	335	12	M 16	18	9,61
	273	-	276,2
300	323,9	-	327,6	440	24	7	395	12	M 20	22	12,6
350	355,6	-	359,7	490	26	7	445	12	M 20	22	15,6
	-	368	372,2
400	406,4	-	411	540	28	7	495	16	M 20	22	18,4
	-	419	423,7
(450)*	457	-	462,5	595	30	7	550	16	M 20	22	21,4
500	508	-	531,6	645	30	7	600	20	M 20	22	24,6

Carbon Steel Flanges Specifications :

Size	:	½" TO 54"
Pressure Rating	:	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	:	ASME B 16.5, ASME B 16.47, API 6A
Type	:	SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials	:	Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

Material of Construction	Standards	Grades
Carbon Steel Flanges		ASTM A105, A-350 LF2 SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, ASTM A 105/ A350 LF3 / A350 LF2 / A350 LF1 Astm A694 F42 Flanges / Astm A694 F46 Flanges / Astm A694 F52 Flanges / Astm A694 F56 Flanges / Astm A694 F60 Flanges / Astm A694 F65 Flanges / Astm A694 F70 Flange
Low Temperature Carbon Steel Flanges	ASTM A350	ASTM A350 Flange ASTM A350 LF2 Flange, ASTM A350 LF3 Flange
