Norma DIN 2631 PN6 - welding neck flange / astm a105 carbon steel mechanical properties

You are Here: Home / Carbon Steel Flanges / Norma DIN 2631 PN6 - welding neck flange



Norma DIN 2631 PN6 - welding neck flange Suppliers Exporters Stockist India :

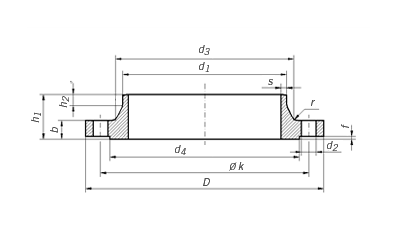

Pipe			Flange				Neck				Raised face		Screws			Weight of a flange (7,85 Kg/dm3)
Rated Diameter	d1		D	b	k	h1	d3	s	r	h2	d4	f	Number	Thread	d2	Kg
	ISO Series 1	DIN Series 2
15	-	20	80	12	55	30	28	2	4	6	40	2	4	M 10	11	0,392
	21,3	-					30
20	-	25	90	14	65	32	35	2,3	4	6	50	2	4	M 10	11	0,592
	26,9	-					38
25	-	30	100	14	75	35	40	2,6	4	6	60	2	4	M 10	11	0,747
	33,7	-					42
32	-	38	120	14	90	35	50	2,6	6	6	70	2	4	M 12	14	1,05
	42,4	-					55
40	-	44,5	130	14	100	38	58	2,6	6	7	80	3	4	M 12	14	1,18
	48,3	-					62
50	-	57	140	14	110	38	70	2,9	6	8	90	3	4	M 12	14	1,34
	60,3	-					74
65	76,1	-	160	14	130	38	88	2,9	6	9	110	3	4	M 12	14	1,67
80	88,9	-	190	16	150	42	102	3,2	8	10	128	3	4	M 16	18	2,71
100	-	108	210	16	170	45	122	3,6	8	10	148	3	4	M 16	18	3,24
	114,3						130
125	-	133	240	18	200	48	148	4	8	10	178	3	8	M 16	18	4,49
	139,7	-					155
150	-	159	265	18	225	48	172	4,5	10	12	202	3	8	M 16	18	5,15
	168,3	-					184
200	219,1	-	320	20	280	55	236	5,9	10	15	258	3	8	M 16	18	7,78
250	-	267	375	22	335	60	282	6,3	12	15	312	3	12	M 16	18	10,8
	273	-					290
300	323,9	-	440	22	395	62	342	7,1	15	15	365	4	12	M 20	22	14
350	355,6	-	490	22	445	62	385	7,1	12	15	415	4	12	M 20	22	18,5
	-	368														16,7
400	406,4	-	540	22	495	65	438	7,1	12	15	465	4	16	M 20	22	21,2
	-	419														19
500	508	-	645	24	600	68	538	7,1	12	15	570	4	20	M 20	22	28,6
600	610	-	755	24	705	70	640	7,1	12	16	670	5	20	M 24	26	31,5
700	711	-	860	24	810	70	740	7,1	12	16	775	5	24	M 24	26	37,4
800	813	-	975	24	920	70	842	7,1	12	16	880	5	24	M 27	30	46,1
900	914	-	1075	26	1020	70	942	7,1	12	16	980	5	24	M 27	30	55,6
1000	1016	-	1175	26	1120	70	1045	7,1	16	16	1080	5	28	M 27	30	61,9
1200	1220	-	1405	28	1340	90	1248	8	16	20	1295	5	32	M 30	33	100
1400	1420	-	1630	32	1560	90	1452	8	16	20	1510	5	36	M 33	36	149
1600	1620	-	1830	34	1760	90	1655	9	16	20	1710	5	40	M 33	36	180
1800	1820	-	2045	36	1970	100	1855	10	16	20	1920	5	44	M 36	39	225
2000	2020	-	2265	38	2180	110	2058	11	16	25	2125	5	48	M 39	42	295
2200	2220	-	2475	42	2390	115	2260	12	18	25	2335	6	52	M 39	42	361
2400	2420	-	2685	44	2600	125	2462	13	18	25	2545	6	56	M 39	42	415
2600	2620	-	2905	46	2810	130	2665	14	18	25	2750	6	60	M 45	48	530
2800	2820	-	3115	48	3020	135	2865	15	18	30	2960	6	64	M 45	48	643
3000	3020	-	3315	50	3220	140	3068	16	18	30	3160	6	68	M 45	48	777
3200	3220	-	3525	54	3430	150	3272	16	20	30	3370	6	72	M 45	48	851
3400	3420	-	3735	56	3640	160	2475	18	20	35	3580	6	76	M 45	48	993
3600	3620	-	3970	60	3860	165	3678	18	20	35	3790	6	80	M 52	56	1001

Carbon Steel Flanges Specifications :

Size	:	½" TO 54"
Pressure Rating	:	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	:	ASME B 16.5, ASME B 16.47, API 6A
Type	:	SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials	:	Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

Material of Construction	Standards	Grades
Carbon Steel Flanges		ASTM A105, A-350 LF2 SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, ASTM A 105/ A350 LF3 / A350 LF2 / A350 LF1 Astm A694 F42 Flanges / Astm A694 F46 Flanges / Astm A694 F52 Flanges / Astm A694 F56 Flanges / Astm A694 F60 Flanges / Astm A694 F65 Flanges / Astm A694 F70 Flange
Low Temperature Carbon Steel Flanges	ASTM A350	ASTM A350 Flange ASTM A350 LF2 Flange, ASTM A350 LF3 Flange

Types Of Pipe Flanges:

Blind Flanges	Lap Joint Flanges	Orifice Flanges	Reducing Flanges
Slip-on-Flanges	Threaded Flanges	Weldneck Flanges	Large Size Flanges
Socket Weld Flanges	Spectacle Blind	Pipe Flange Bolts	Pipe Flange Gaskets
