Norma DIN 2635 PN40 - welding neck flange Suppliers Exporters Stockist India :

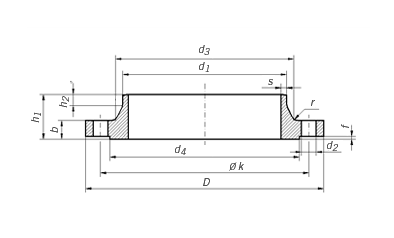

Pipe			Flange				Neck				Raised face		Screws			Weight of a flange (7,85 Kg/dm3)
Rated Diameter	d1		D	b	k	h1	d3	s	r	h2	d4	f	Number	Thread	d2	Kg
	ISO Series 1	DIN Series 2
15	-	20	95	16	65	38	30	2	4	6	45	2	4	M 12	14	0,746
	21,3	-					32
20	-	25	105	18	75	40	38	2,3	4	6	58	2	4	M 12	14	1,06
	26,9	-					40
25	-	30	115	18	85	40	42	2,6	4	6	68	2	4	M 12	14	1,29
	33,7	-					45
32	-	38	140	18	100	42	52	2,6	6	6	78	2	4	M 16	18	1,88
	42,4	-					56
40	-	44,5	150	18	110	45	60	2,6	6	7	88	3	4	M 16	18	2,33
	48,3	-					64
50	-	57	165	20	125	48	72	2,9	6	8	102	3	4	M 16	18	2,82
	60,3	-					75
65	76,1	-	185	22	145	52	90	2,9	6	10	122	3	8	M 16	18	3,74
80	88,9	-	200	24	160	58	105	3,2	8	12	138	3	8	M 16	18	4,75
100	-	108	235	24	190	65	128	3,6	8	12	162	3	8	M 20	22	6,52
	114,3	-					134
125	-	133	270	26	220	68	155	4	8	12	188	3	8	M 24	26	9,07
	139,7	-					162
150	-	159	300	28	250	75	182	4,5	10	12	218	3	8	M 24	26	11,8
	168,3	-					192
(175)	193,7	-	350	32	295	82	218	5,6	10	15	260	3	12	M 27	30	18,2
200	219,1	-	375	34	320	88	244	6,3	10	16	285	3	12	M 27	30	21,5
250	-	267	450	38	385	105	298	7,1	12	18	345	3	12	M 30	33	34,9
	273	-					306
300	323,9	-	515	42	450	115	362	8	12	18	410	4	16	M 30	33	49,7
350	355,6	-	580	46	510	125	408	8,8	12	20	465	4	16	M 33	36	68,1
	-	368
400	406,4	-	660	50	585	135	462	11	12	20	535	4	16	M 36	39	96,5
	-	419
(450)	457	-	685	50	610	135	500	12,5	12	20	560	4	20	M 36	39	99,7
500	508	-	755	52	670	140	562	14,2	12	20	615	4	20	M 39	42	117

Carbon Steel Flanges Specifications :

Size	:	½" TO 54"
Pressure Rating	:	150#, 300#, 600#, 900#, 1500#, 2500#
Standards	:	ASME B 16.5, ASME B 16.47, API 6A
Type	:	SORF, WNRF, SWRF, BLRF, Threaded etc.
Specials	:	Spacers, Spectacle Blinds, Drip Rings, RTJ, Tongue, Groove, Orifice, etc.

Material of Construction	Standards	Grades
Carbon Steel Flanges		ASTM A105, A-350 LF2 SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, ASTM A 105/ A350 LF3 / A350 LF2 / A350 LF1 Astm A694 F42 Flanges / Astm A694 F46 Flanges / Astm A694 F52 Flanges / Astm A694 F56 Flanges / Astm A694 F60 Flanges / Astm A694 F65 Flanges / Astm A694 F70 Flange
Low Temperature Carbon Steel Flanges	ASTM A350	ASTM A350 Flange ASTM A350 LF2 Flange, ASTM A350 LF3 Flange

Types Of Pipe Flanges:

Blind Flanges	Lap Joint Flanges	Orifice Flanges	Reducing Flanges
Slip-on-Flanges	Threaded Flanges	Weldneck Flanges	Large Size Flanges
Socket Weld Flanges	Spectacle Blind	Pipe Flange Bolts	Pipe Flange Gaskets
