Material
|
Size
|
Length
|
Specification
|
Manufacturer
|

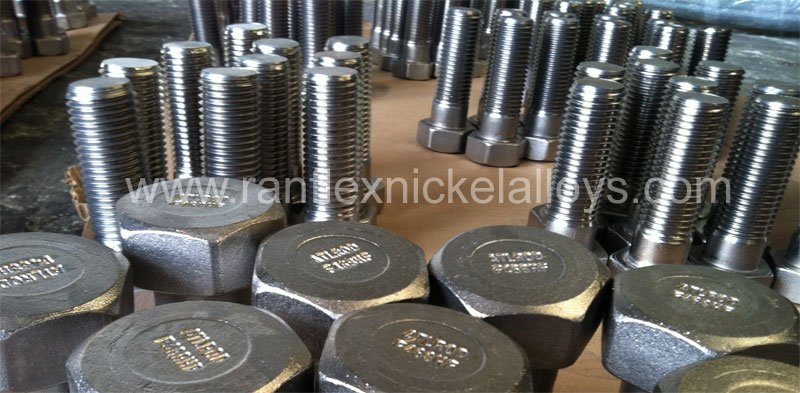

Inconel 600 Fasteners |
M 02 to M 160
|
3 mmto 200 mm |
|
|
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | OR |
Inconel 600 | 2.4816 | N06600 | NCF 600 | NC15FE11M | NA 13 | МНЖМц 28-2,5-1,5 | NiCr15Fe | ЭИ868 |
Inconel 600 | Ni | Fe | C | Mn | Si | Cu | Cr | S |
72.0 min | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.5 max | 0.5 max | 14.0 – 17.0 | 0.015 max |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|
8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel Fasteners | Inconel Alloy Fasteners |
Inconel 600 Nuts | Inconel Alloy Bolts Supplier |
Inconel 600 Washers Exporter | Inconel 600 Stud Bolt |
Inconel 600 Fender Washer | Inconel Alloy Bolts Manufacturer |
ASTM B166 Cap Screw | Inconel 600 Foundation Bolts |
Inconel 600 Square Nut Exporter | Inconel Alloy Pan Head Screw Stockist |
DIN 2.4816 Inconel Bolts Manufacturer | Inconel Pan Head Screw |
Inconel 600 Double Ended Stud | Inconel 600 Tie Bar Exporter |
UNS N06600 Square Bolts Supplier | Inconel Alloy Punched Washer Distributor |
Inconel Alloy Lock Nut Supplier | Inconel 600 Coupler Nuts |
Inconel Flat Washer | Inconel Locking Nuts Manufacturer |
Inconel Alloy Studbolt | ISO Certified Inconel Countersunk Slotted Screw |
600 alloy fasteners | Alloy 600 Fasteners |
Alloy | Common Name | Related Specification | |||
British | European | ASTM | UNS | ||
Alloy 600 | Inconel 600 ® | BS 3076 NA 14 | 2.4816 | B166 | N06600 |
Inconel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
Standard: | DIN 933, DIN 931, ANSI, JIS standards |
Inconel 600 Fasteners In Form of: |
|
Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
Inconel 600 Fasteners Packing: | IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request |
Inconel 600 Fasteners Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
Property Class: | For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593HFor Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040For SHCS: F837B, F837C, F837E, F837For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2 |
Inconel 600 Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide,Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: PassivatedSelf-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
Production process | M2-M24: Cold Froging, hot forging M24-M100,machining and CNC for Customized connecting element |
Inconel 600 Fasteners Origin and service-region: | EuropeanOrigin of Inconel 600 Fasteners are Western European. However projects with eastern origin are possible on request. |
Inconel Fasteners Grades: | Inconel 600 Fasteners, Inconel 601 Fasteners, Inconel 625 Fasteners, Inconel 718 Fasteners, Inconel X-750 Fasteners |
Surface Coating: |
|
Our Fastener plant is equipped with various testing facilities like Tensile Testing Machine also known as tension testing. We also conduct other tests like Hardness Test, IGC Test, Positive Material Identification Test to ensure that all the product going out of our manufacturing plant are the best in terms of quality.
Alloy
|
Common Name
|
Related Specification
|
|||
British
|
European
|
ASTM
|
UNS
|
||
Alloy 600 Fasteners
|
Inconel 600 ®
|
BS 3076 NA 14
|
2.4816
|
B166
|
N06600
|
Alloy 601 Fasteners
|
Inconel 601 ®
|
2.4627
|
B166
|
N06601
|
|
Alloy 625 Fasteners
|
Inconel 625 ®
|
BS 3076 NA 21
|
2.4856
|
B446
|
N06625
|
Alloy 718 Fasteners
|
Inconel 718 ®
|
1.4668
|
B637
|
N07718
|
|
Alloy 750 Fasteners
|
Inconel 750 ®
|
2.4669
|
B637
|
N07750
|
|
Alloy 400 Fasteners
|
Monel 400 ®
|
BS 3076 NA13
|
2.4360
|
F467
|
N04400
|
Alloy K500 Fasteners
|
Monel K500 ®
|
BS 3076 NA18
|
4.4375
|
B865-04
|
N05500
|
Alloy C276 Fasteners
|
Hastelloy C276 ®
|
2.4819
|
B574
|
N10276
|
|
Alloy 22 Fasteners
|
Hastelloy C22 ®
|
2.4602
|
B574
|
N06022
|
|
Alloy B2 Fasteners
|
Hastelloy B2 ®
|
B335
|
N10665
|
||
Alloy X Fasteners
|
Hastelloy X ®
|
2.4655
|
B572
|
N06002
|
|
Alloy B3 Fasteners
|
Hastelloy B3 ®
|
2.4600
|
B335
|
N10675
|
|
Alloy G30 Fasteners
|
Hastelloy G30 ®
|
2.4603
|
B581
|
N06030
|
|
Alloy 50 Fasteners
|
Nitronic 50 ®
|
A479 XM-19
|
S20910
|
||
Alloy 60 Fasteners
|
Nitronic 60 ®
|
A193 B8S
|
S21800
|
||
Alloy 75 Fasteners
|
Nimonic 75 ®
|
2.4951
|
B637
|
N06075
|
|
Alloy 80A Fasteners
|
Nimonic 80A ®
|
BS 4882 NA20
|
2.4952
|
B637
|
N07080
|
Alloy 90 Fasteners
|
Nimonic 90 ®
|
B408
|
N07090
|
||
Alloy 800 Fasteners
|
Incoloy 800 ®
|
BS 3076 NA15
|
1.4876
|
B408
|
N08800
|
Alloy 800H Fasteners
|
Incoloy 800H ®
|
B408
|
|||
Alloy 800 HT Fasteners
|
Incoloy 800HT ®
|
1.4959
|
B408
|
N08811
|
|
Alloy 825 Fasteners
|
Incoloy 825 ®
|
BS 3076 NA16
|
2.4858
|
B425
|
N08825
|
Alloy 925 Fasteners
|
Incoloy 925 ®
|
B805
|
N09925
|
||
Alloy DS Fasteners
|
Incoloy DS ®
|
BS 3076 NA17
|
1.4862
|
N08330
|
|
|
|
|
|
|
|
|
|
|
|
Hexagon Bolts / Set Screws
|
Stud Bolts
|
Hexagon Nuts
|
Socket Cap screws
|
---|---|---|---|
DIN 931
|
BS4882
|
DIN 934
|
DIN 912
|
DIN 933
|
DIN 976
|
BS 1768
|
DIN 6912
|
BS 1768
|
BS 1769
|
DIN 7984
|
|
UNI 5731
|
BS 1083
|
ANSI B18.3
|
|
UNI 5739
|
BS 3692
|
ISO 4762
|
|
ISO 4014
|
ISO 4032
|
UNI 5931
|
|
ISO 4017
|
ISO 4033
|
BS 2470
|
|
BS 1769
|
ANSI B18.2.2
|
BS 4168
|
|
BS 3692
|
|||
ANSI B18.2.1
|
Socket & Slotted Set Screws
|
Socket & Slotted Countersunk Screws
|
Studs
|
Washers
|
---|---|---|---|
DIN 913
|
DIN 963
|
DIN 938
|
DIN 125
|
DIN 914
|
DIN 7991
|
DIN 939
|
DIN 9021
|
DIN 915
|
BS 4168
|
DIN 2510
|
BS 4320
|
DIN 916
|
BS 1981
|
BS 4439
|
BS 3410
|
DIN 551
|
BS 483
|
BS 2693
|
|
DIN 553
|
BS 2470
|
Spring Washers
|
|
DIN 438
|
DIN 127
|
||
BS 4168
|
BS 4464
|
||
BS 1802
|
ASTM A193 Grade B5, ASTM A193 Grade B6, ASTM A193 Grade B7, ASTM A193 Grade B16, ASTM A193 Grade B8, ASTM A193 Grade B8C, ASTM A193 Grade B8M, ASTM A193 Grade B8T, ASTM A193 Grade B8, ASTM A193 Grade B8C, ASTM A193 Grade B8M, ASTM A193 Grade B8T, ASTM A320 Grade L7, ASTM A320 Grade L7A, ASTM A320 Grade L7B, ASTM A320 Grade LC7, ASTM A320 Grade L43, ASTM A320 Grade B8, ASTM A320 Grade B8C, ASTM A320 Grade B8T, ASTM A320 Grade B8F, ASTM A320 Grade B8M, ASTM A320 Grade B8, ASTM A320 Grade B8C, ASTM A320 Grade B8F, ASTM A320 Grade B8M, ASTM A320 Grade B8T, SAE J429 Grade 5, ASTM A449, SAE J429 Grade 5.1, SAE J429 Grade 5.2, ASTM A325 Type 1, ASTM A325 Type 2, ASTM A325 Type 3, ASTM A354 Grade BB, ASTM A354 Grade BC, SAE J429 Grade 7, SAE J429 Grade 8, ASTM A354 Grade BD, SAE J429 Grade 8.1, ASTM A490 |
|
Physical Properties |
°F |
British Units |
°C |
Metric Units |
---|---|---|---|---|
Density |
Room |
0.304 lb./cubic in. |
Room |
8.43g/cubic cm |
Electrical Resistivity |
70 200 400 600 800 |
40.6 microhm-in. 40.9 41.5 42.2 43.0 |
21 93 204 316 427 |
1.03 microhm-m 1.04 1.05 1.07 1.09 |
Mean Coefficient of Thermal Expansion |
70-200 70-400 70-600 70-800 |
7.4 microinches/in.-°F 7.7 7.9 8.1 |
21-93 21-204 21-316 21-427 |
13.3 x 10(-6)m/m·K 13.9 14.2 14.6 |
Thermal Conductivity |
70 200 400 600 800 |
103 Btn-in./ft².-hr.-°F 109 121 133 145 |
21 93 204 316 427 |
14.8 W/m·K 15.7 17.4 19.2 20.9 |
Modulus of Elasticity |
Room |
30.0 x 10(6) psi |
Room |
207 GPa |
In generally, If you have no special requirement, we will use the mass packing (bag carbon tray). If you want to do the special packing, please advise us the specific details, pictures or design. Shipping In generally, our customer often request to delivery by express, plane or sea. Any other better way will be also accepted well. |
|
We are Exporter of Inconel Alloy 600 Fasteners in Worldwide Such as India, Tibet, Saudi Arabia, Canada, Serbia, Spain, Austria, Iraq, Chile, Lithuania, Taiwan, Libya, Ecuador, India, Thailand, Iran, New Zealand, Poland, Algeria, Colombia, Bulgaria, Qatar, Bhutan, Germany, Australia, Ghana, Indonesia, South Korea, Lebanon, Kazakhstan, Macau, South Africa, Croatia, Israel, Namibia, Kuwait, Estonia, Pakistan, Norway, Czech Republic, Bahrain, Mongolia, Nigeria, Afghanistan, Egypt, Belgium, Bolivia, Vietnam, Jordan, Kenya, Singapore, France, Netherlands, Azerbaijan, Nepal, Romania, China, Slovakia, Angola, Philippines, Belarus, Morocco, Turkey, Greece, Portugal, Switzerland, Hong Kong, Nigeria, Peru, Chile, Iran, United Kingdom, Denmark, Yemen, Bangladesh, Argentina, Russia, Mexico, Malaysia, Italy, Trinidad & Tobago,Tunisia, Japan, Sri Lanka, Brazil, Gabon, Ireland, Puerto Rico, Hungary, United Arab Emirates, Gambia, Sweden, Finland, United States, Venezuela, Oman, Zimbabwe, Costa Rica, Mexico, Ukraine, Poland.
We are Suppliers of Inconel 600 Fasteners in India Such as Mumbai, Hanoi, Noida, Chiyoda, Nashik, Ankara, Vadodara, Pimpri-Chinchwad, Chennai, Cairo, Montreal, Perth, Aberdeen, Doha, Karachi, Granada, Rajkot, Calgary, Santiago, New York, Thane, Manama, Riyadh, Tehran, Geoje-si, Hyderabad, Dubai, Moscow, Sydney, Ahmedabad, Ulsan, Singapore, Jakarta, Vung Tau, Melbourne, Al Khobar, London, Navi Mumbai, Ernakulam, Gimhae-si, Ranchi, Algiers, Kuala Lumpur, La Victoria, Courbevoie, Secunderabad, Hong Kong, Haryana, Rio de Janeiro, Dammam, Los Angeles, Al Jubail, Bogota, Kuwait City, Mumbai, Gurgaon, Port-of-Spain, Faridabad, Colombo, Ludhiana, Milan, Abu Dhabi, Dallas, Bangkok, Bhopal, Ahvaz, Ho Chi Minh City, Lagos, Surat, Madrid, Thiruvananthapuram, Busan, Chandigarh, Coimbatore, New Delhi, Sharjah, Houston, Baroda, Istanbul, Howrah, Mexico City, Bengaluru, Lahore, Petaling Jaya, Jeddah, Visakhapatnam, Jaipur, Brisbane, Seoul, Muscat, Kolkata, Indore, Atyrau, Kanpur, Caracas, Edmonton, Toronto, Jamshedpur, Nagpur, Pune.
